Product Description

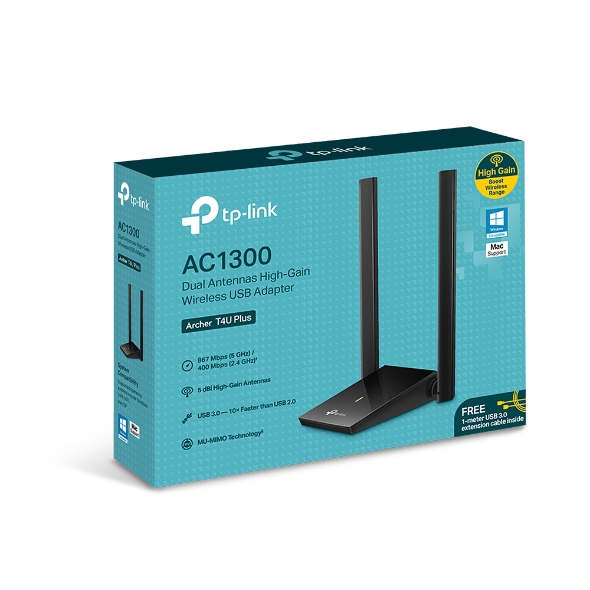

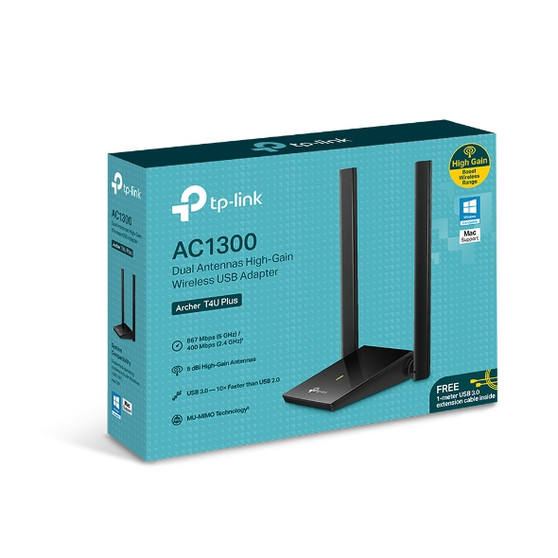

TP-Link Archer T4U Plus AC1300 Dual Antennas High-Gain Wireless USB Adapter
Ultra-Fast Wi-Fi ; 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
Dual High-Gain antennas ; Improved range, signal quality and transmission performance
MU-MIMO ;Delivers highly efficient wireless connection
Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
Adjustable, Multi-Directional Antenna - Enable flexible deployment for the best reception.
HARDWARE FEATURES
Interface USB 3.0
Button WPS button
Dimensions ( W x D x H ) 3.641.240.55 in. (92.4731.5513.9mm)
Antenna 2 High Gain External Antennas
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz
2.4GHz
Signal Rate 5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHzï¼
11a 6Mbps: -91dBm
11a 54Mbps: -77dBm
11nHT20ï¼-74dBm
11nHT40ï¼-71dBm
11ac HT20: -70dBm
11ac HT40: -66dBm
11ac HT80: -62dBm
2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -74dBm
11n HT20: -72dBm
11n HT40: -70dBm
Transmit Power <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U
Quick Installation Guide
Resource CD
System Requirements Windows 10/8.1/8/7/XP, Mac OS X 10.9-10.13
