Product Description

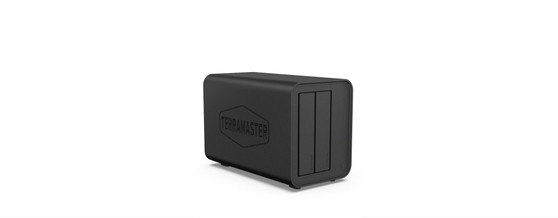

D5 HYBRID DISK ATTACHED STORAGE (DAS)
Innovative Storage
The D5 Hybrid is the industry's first hybrid direct-attached disk enclosure. It can accommodate up to 2 SATA HDDs/SSDs and 3 M.2 2280 NVMe SSDs, combining the advantages of HDDs’massive capacity and SSDs’ high-speed performance simultaneously! The great benefits of hybrid storage comes from using HDDs for storing infrequently accessed cold data, and SSDs for the more frequently accessed hot data. With the complimentary TPC Backupper backup software from TerraMaster, you can effortlessly schedule backups of hot data to HDDs, enhancing the security of your data.
Automatic Backup
TPC Backupper is an extremely user-friendly Windows PC backup tool that allows you to schedule the backup of folders and disk partitions on your Windows PC to TerraMaster USB devices or NAS network storage servers.To start automatic backups, simply connect the device to your computer, install the TPC Backupper client, and set up a scheduled backup task.This straightforward and reliable backup solution enables you to concentrate on your work, while in the background the TerraMaster D5 Hybrid concentrates on its work to protect your crucial data. TPC Backupper supports both incremental and differential backup strategies and is compatible with Windows 8/8.1/10/11.Download Now
Superior Compatibility
The D5 Hybrid features a USB Type-C interface, offering excellent compatibility with various protocols, including USB 3.0, USB 3.1, USB 3.2, USB4, Thunderbolt 3, and Thunderbolt 4. A complimentary 1m USB Type-C cable is included. The interface is compatible with Windows 7 and later, macOS X 10.6 and later, and Linux Ubuntu 16/18/20.
2+3 Array Mode
The D5 Hybrid utilizes the unique 2+3 array mode of TerraMaster. With two SATA HDDs/SSDs, you can configure various array modes such as RAID 0, RAID 1, JBOD, Single Disk, catering to the cold data storage needs in different applications. The three NVMe M.2 SSDs support only the single-disk mode. It is recommended to store frequently accessed hot data on NVMe M.2 SSDs for faster transfer speeds.
Reduced Noise Levels
The unit’s close placement to the user has required a design that achieves greatly reduced noise to meet the strict requirements for these levels in desktop products. The high-speed rotation of disks and heads in HDDs when reading and writing produces vibrations with noticeable noise. These vibrations may resonate with the product's cavity and amplify the overall noise. To combat this, besides incorporating additional shock-absorbing measures, TerraMaster’s engineers have designed numerous special sound-absorbing panels in the new structure to minimize noise. Testing has shown that the new generation of products achieve noise levels 50% lower than the previous generation’s, with a noise level in standby mode of only 19dB(A)!
Test conditions: Using 2 SATA HDDs/SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m
| Storage | |
| Disk Slot Number | 2 |
| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| M.2 2280 NVMe Slot | 3 |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 68 TB (22 TB drive x 2 + 8 TB drive x 3) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1 |
| Hardware RAID | √ |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | √ |
| Drive Hot Swap | / |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSD Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |
| External Ports | |
| USB | USB3.2 Type-C gen2 10Gbps |
| Thunderbolt | / |
| DP Interface | / |
| Network Interface | / |
| USB HOST Interface | / |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read：565MB/s ( HDD*2_RAID0 ); Read：960MB/s (SSD*2_RAID0)； |
| Reading Speed (max.) | Read：980MB/s (NVMe M.2 SSD *1 ) |
| Writing Speed (max.) | Write：524MB/s ( HDD*2_RAID0 ); Write：956MB/s (SSD*2_RAID0 )； |
| Writing Speed (max.) | Write：880MB/s (NVMe M.2 SSD *1 ) |
| Appearance | |
| Size | 222 x 119 x 154 mm |
| Packaging Size | 258 x 220 x 170 mm |
| Weight | Net weight: 1.3 Kg Gross Weight: 2.1 Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 1) |
| Fan mode | Smart |
| Noise Level | 19.0 dB(A) ( Using 2 SATA HDDs/SSDs in standby mode) |
| The microphone is placed at a distance of 1 meter from the device. | |
| Background noise: 17.3 dB(A) | |
| Power Supply | |
| Power Supply | 40 W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 30 W(Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in read/write state ) |
| 8.1 W (Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in hibernation) | |
| Environment Temperature | |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS、Mac OS、Linux |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| USB Cable C to Type-C (10Gb) 1 Meter (x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
This is a Disk enclosure. Direct Attached Storage. NOT A NAS.
