Product Description
Details:

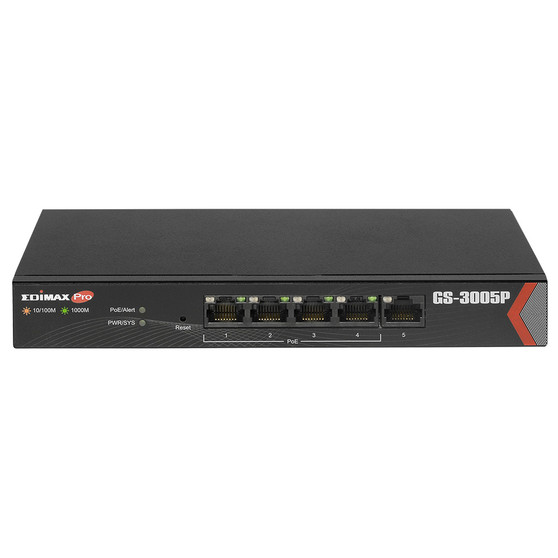

The Edimax Pro GS-3005P is a web-smart switch with 4 Gigabit PoE+ ports. Designed for small office and home office network environments, its desktop form allows for integration in the most widely used SMB offices. With smart web management, PoE (Power over Ethernet) ports can be manually set up to extend PoE power delivery distances to up to 200 meters while also supporting smart control for VLAN (Virtual LAN), QoS (Quality of Service) and IGMP (Internet Group Management Protocol) snooping v1/v2 & v3. The PoE also features auto-detection and power backfeed protection to provide power efficiently and, at the same time, avoid damaging the PoE ports. The Edimax GS-3005P is a superb choice to boost your network environment’s performance and efficiency.
802.3at PoE with Auto Detection & Power Backfeed Protection
The GS-3005P features 4 IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30W of electricity per port and has a total power supply of 60W to power any 802.3at or 802.3af compliant power device. With PoE detection capability, the GS-3005P can verify whether the connected device is IEEE 802.3at or 802.3af compliant. If a PoE device is not detected, only network data will be transmitted through the LAN cable. Moreover, with the PoE power backfeed protection from the passive PoE injectors, the GS-3005P avoids damaging the PoE ports.
PoE for Easy Installation and Better Cost Efficiency
Power over Ethernet technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. Overall, the GS-3005P can lower installation costs and simplify deployment. The GS-3005P can be used with different PoE products such as access points, IP cameras or VoIP devices and is an effective solution for network environments where power outlets are difficult to access.
Power and Data Distance Extension, Long Range up to 200 Meters
The GS-3005P provides extended PoE power delivery to distance up to 200 meters whereas a general PoE has Ethernet cable distance restrictions of 100 meters. For 200-meter power delivery, the unit operates on a per-port basis of 10Mbps duplex and supports up to 30-watt PoE power output. This specification creates flexibility in planning for installing PoE-enabled devices such as IP cameras.
Smart Tools for Improved Network Efficiency and Security
The GS-3005P features intelligent and simple network monitoring tools that allow for improved network efficiency and security. The web-based interface management feature includes QoS bandwidth control for better traffic management, VLAN for enhanced network security and multicast IGMP snooping v1/v2/v3 for streaming applications.
APPLICATION DIAGRAM
- Maximum performance, actual data rates and coverage will vary depending on network conditions and environmental factors.
- Actual viewing resolution and frame rate of network cameras depend on connection speed.
- Product specifications and design are subject to change without notice.
Specifications:
HARDWARE
- Ports:
- 1 x RJ-45 10/100/1000Base-T Gigabit Ethernet Port
- 4 x RJ-45 10/100/1000Base-T Gigabit Ethernet PoE+ Ports
- Transmission Method: Store and forward
- Button: Reset button
- Switch: Power ON/Off switch
- LED Indicators
- Per Port: Link/Act
- PoE: Act/Status
- Per Unit: Power
- Fan: Fanless
- Power Input: 100-240V AC, 50-60 Hz, external power supply 55V/1.3A
- Total Power Budget: 72W
- Dimensions (L x W x H): 193 × 84 × 26 mm
- Weight: 0.39kg
PERFORMANCE
- Switching Capacity: 10Gbps
- Forwarding Rate: 35.712Mpps
- MAC Address: 4K
- Buffer Memory: 128KB
- Jumbo Frames: 9KB
- Filtering/Forwarding Rates
- 1000Mbps port – 1,488,000pps
- 100Mbps port - 148,800pps
- 10Mbps port - 14,880pps
POWER OVER ETHERNET
- Standard: IEEE 802.3af, IEEE 802.3at
- Power Output: Up to 30W per port
- Pin Assignment: 1/2(+), 3/6(-) End-Span (mode A)
- Available Power Budget: 60W, Ports 1-4
- Management: PoE output on/off management
- Backfeed Protection: Built-in
SMART FEATURES
- VLAN
- Up to 8 VLANs and 4096 VLAN IDs
- 802.1Q tag-based VLAN
- Port Trunking: IEEE 802.3ad LACP Trunk-Static trunk up to 1 trunk group
- IGMP Snooping:
- IGMP v1/v2/v3 snooping
- Block unknown multicast traffic
- Multicast groups: 128
- QoS: Port-based QoS, IEEE802.1p QoS, 4 Priority Queues, scheduling algorithm
- Management:
- User Interface: Web-based management
- User Account: Login account configuration
- Firmware Upgrade: Firmware upgrade by WEB
- Loop Detection/Prevention
- Security: Broadcast Storm control
ENVIRONMENT
- Temperature
- Operating: 0 ~ 40?
- Storage: -40 ~ 70?
- Humidity (Non-condensing) Operating: 10 ~ 90%
- Storage: 5 ~ 90%
STANDARDS COMPLIANCE
- Standards:
- IEEE 802.3 10BaseT Ethernet
- IEEE 802.3u 100BaseTX Fast Ethernet
- IEEE 802.3ab 1000BaseT Gigabit Ethernet
- IEEE 802.3x Full-duplex and Flow Control
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1Q VLAN
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3af Power Over Ethernet (PoE)
- IEEE 802.3at Power Over Ethernet Plus (PoE+)
- Certifications: FCC Class A, CE
Notes:
- Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
- Actual viewing resolution and frame rate of network cameras depend on connection speed.
- Product specifications and design are subject to change without notice.
